Polyester Geogrid

Update: 2017/6/30 View:

Brand: Wholeworld Flex
Type: Polyester Geogrid
Price: 0.00 RMB
Promotion: Consult Us RMB ( 0 Customers Bought)

Introduction

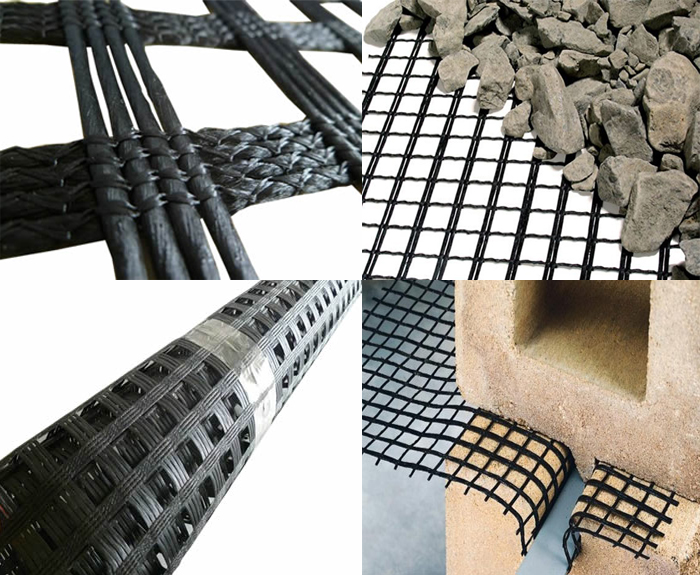

Polyester Geogrid

Woven with high-tenacity polyester and UV-resistant yarns, our Polyester Geogrid are designed to hold up to the challenges of structural reinforce Model : ZHGQ 30/30 40/40 50/50 60/60 80/80 cement in civil and environmental applications.

Model : ZHGQ 30/30 40/40 50/50 60/60 80/80

Feature:
High tensile strength, even deformation in length and breadth, high water penetration, inverse filter, endurance, softness and elasticity.
Function:
ribbing, inverse, filtering, drainage, guard, isolation
Engineering application:
(1) Reinforce dam, drain water, inverse filter, equalize bottom stress, even ground deformation, prevent silt block, accelerate concretion and water drainage, increase ground strength and stability.
(2) Block soil, increase stability.
(3) Dam drainage, enhance inverse filter and drainage.
(4) Drainage of hidden pipe.

Item: ZHGQ 30/30 40/40 50/50 60/60 80/80

Properties		Unit	60/30A	80/30A	100/30A	150/30A	60/30B	80/30B	100/30B	150/30B
Material		/	High Tenacity polyester Yarn
Coating		/	PVC coating
Process		/	Knitted
Tensile Strength	MD	KN/M	≥60	≥80	≥100	≥150	≥60	≥80	≥100	≥150
Tensile Strength	CD	KN/M	≥30	≥30	≥30	≥30	≥30	≥30	≥30	≥30
Elongation	MD	%	≤12	≤12	≤12	≤12	≤12	≤12	≤12	≤12
Elongation	CD	%	≤12	≤12	≤12	≤12	≤12	≤12	≤12	≤12
Length		M	≤100
Width		M	≤5
Remark		Our company can manufacture Biaxial Geogrid also. The largest tensile strength could be 300 KN/M.
